Cryo-EM guided de novo Protein Fold Elucidation

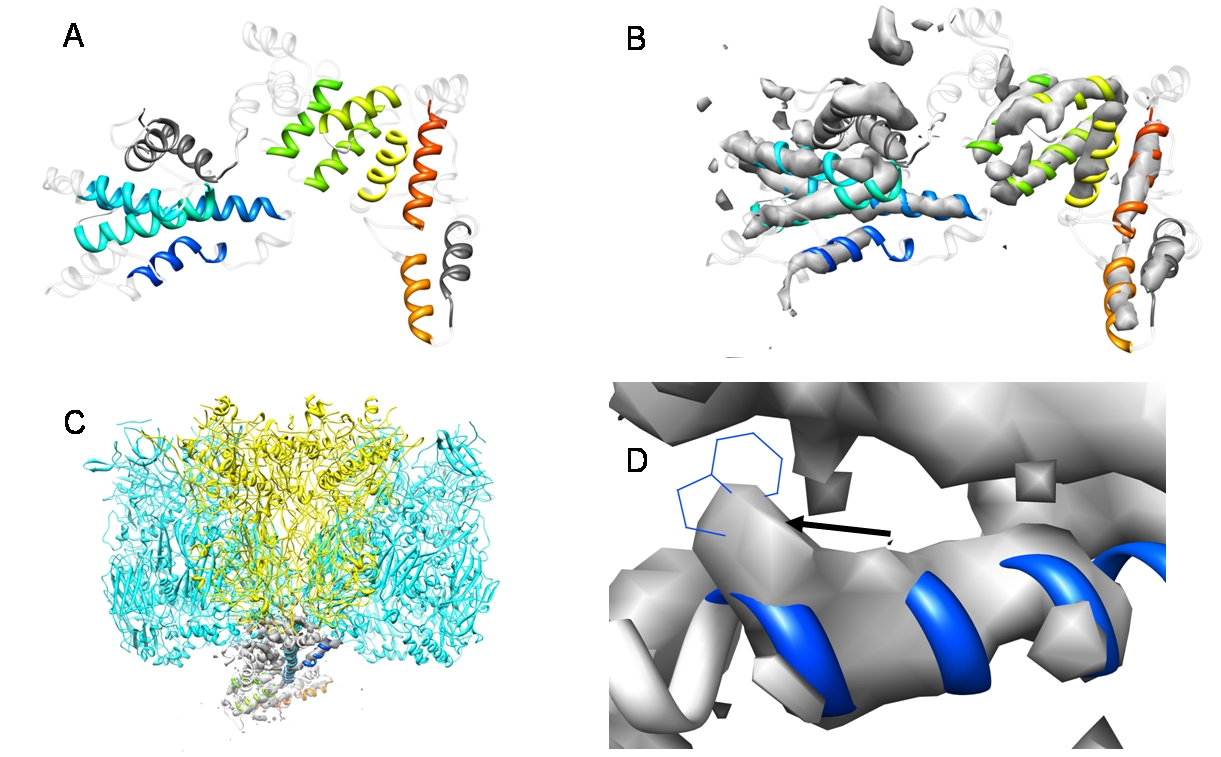

Using cryo-electron microscopy (cryoEM) numerous sub-nanometer resolution density maps of large macromolecular assemblies have been recently reported. Although no atomic detail is  generally resolved in these density maps, at 7 Å resolution α-helices are observed as density rods. The Primary goal of this project is the development of a computational protein structure prediction algorithm that incorporates the experimental cryoEM density map as restraints. The placement of helices is restricted to regions where density rods are observed in the cryoEM density map. The Monte Carlo based protein folding algorithm is further driven by knowledge based energy functions.

The method has been benchmarked with eleven highly α-helical proteins of known structure. The chosen proteins range in size from 250 to 350 residues. Starting with knowledge of the true secondary structure for these proteins, the method can identify the correct topology within the top scoring 10 models. With more realistic secondary structure prediction information, the correct topology is found within the top scoring 5 models for eight of the eleven proteins.




Alumni Project Members: Steffen Lindert , Rene Staritzbichler , Mert Karakas , Nils Woetzel , Nathan Alexander , Michaela Fooksa

Download the BCL to get this and many other applications
Mac OS X 10.4 - 10.14 Linux x86_64 (64-bit)
CentOS 6+ / RedHat 6+
pre-RH6 compile from source
available from the license server
Windows x86 (32-bit)
bcl-4.3.1.dmg bcl-4.3.1-Windows-x86.exe
To run bcl applications, academic users need a license from our license server
Commercial users need to contact us at for licensing and pricing information
